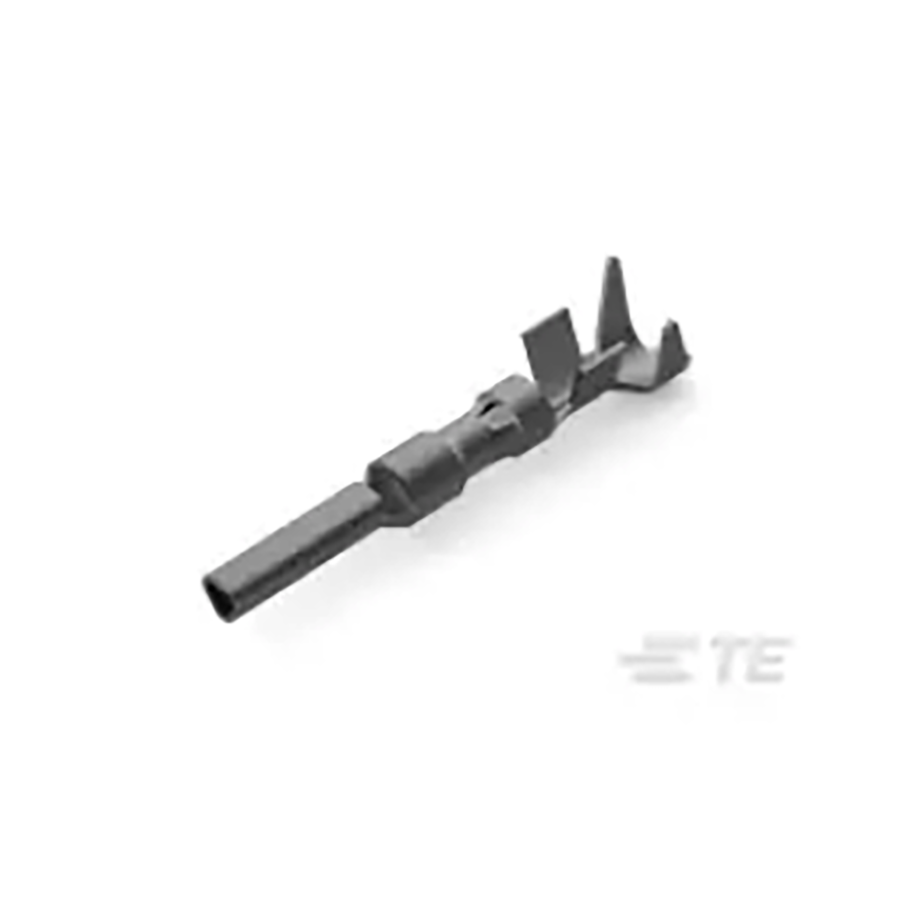

794223-1
Manufacturer:
TE Connectivity
Mfr.Part #:
794223-1
Datasheet:
Description:
IC and Component Sockets Cable Socket
| Parameter | Value |
|---|---|
| Length | 19.91 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 3.94 mm |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 4.45 mm |
| RoHS | Compliant |
| Contact Plating | Pre-Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Current Rating | 9.5 A |
| Max Current Rating | 10.5 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 20 AWG to 16 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Current Rating | 10.5 A |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 16 AWG |
| Insulation Diameter | 3.2 mm |
| Contact Gender | Female |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | Without |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 33990
Distributors
pcbx
pcbxUnit Price$0.31610
Ext.Price$0.31610
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31610 | $0.31610 |
| 10 | $0.15805 | $1.58050 |
| 50 | $0.12158 | $6.07900 |
| 100 | $0.09352 | $9.35200 |
| 500 | $0.07194 | $35.97000 |
| 1000 | $0.05534 | $55.34000 |
| 3000 | $0.04257 | $127.71000 |
| 5000 | $0.04257 | $212.85000 |
| 10000 | $0.03822 | $382.20000 |
| 30000 | $0.03629 | $1088.70000 |
| 50000 | $0.03445 | $1722.50000 |
